Reading a borelog without a geologist
Geotechnical reports and borelogs are the foundational truth of any earthworks project. However, you don't always have a geologist standing next to you when a rapid decision needs to be made on-site. Site engineers must develop a practical fluency in interpreting borelog data to anticipate soil behavior, groundwater levels, and necessary excavation techniques.
1 · Deciphering SPT 'N' Values and Soil Density Profiles
Implementing robust standards for deciphering spt 'n' values and soil density profiles requires aligning our field crews with standardized geotechnical and engineering procedures.
Borelog analysis is critical for selecting and designing building and bridge foundations. A standard borelog documents soil strata types, groundwater levels, and Standard Penetration Test (SPT) N-values at regular depth increments. SPT N-values represent the blow count required to drive a split-spoon sampler 300mm into the soil. Higher N-values indicate denser sand or stiffer clay, translating to higher Safe Bearing Capacity (SBC). In the clayey and silty soils of Coimbatore, low N-values (below 10) near the surface warn of soft soils prone to consolidation and settlement. Our engineers analyze these profiles to determine if shallow footings are safe or if we must over-excavate and replace the soil with compacted gravel, utilize raft foundations, or drive concrete piles to reach deeper, stable bearing strata. We also cross-reference borelog data with laboratory tests on undisturbed soil samples, such as direct shear and consolidation tests, to refine our foundation designs and predict settlement characteristics with high accuracy, ensuring structural safety under all design loads.
Expansive clay soils, such as black cotton soil, have low bearing capacity and exhibit large volume changes when wet. To stabilize these soils, we perform lime stabilization. When hydrated lime [Ca(OH)2] is mixed into wet clay, it initiates cation exchange and pozzolanic reactions. Calcium ions replace sodium and potassium ions on clay particle surfaces, causing clay platelets to flocculate into larger aggregates. This reduces the plasticity index, water absorption, and swelling potential of the clay, while increasing its shear strength. We use tractor-mounted rototillers to mix lime into the soil, compact it using sheep's foot rollers, and cure the layer for 7 days before laying subgrade courses. We verify lime content and compaction uniformity using field testing, ensuring soil properties are permanently stabilized. This stabilization method provides a firm base for subgrade structures, extending road pavement service life.
"Borelog analysis is critical for selecting and designing building and bridge foundations."
2 · Water Table Markers & Deep Trench Safety Management
Under our Coimbatore PWD quality guidelines, executing water table markers & deep trench safety management demands rigorous verification of all field metrics and material properties.

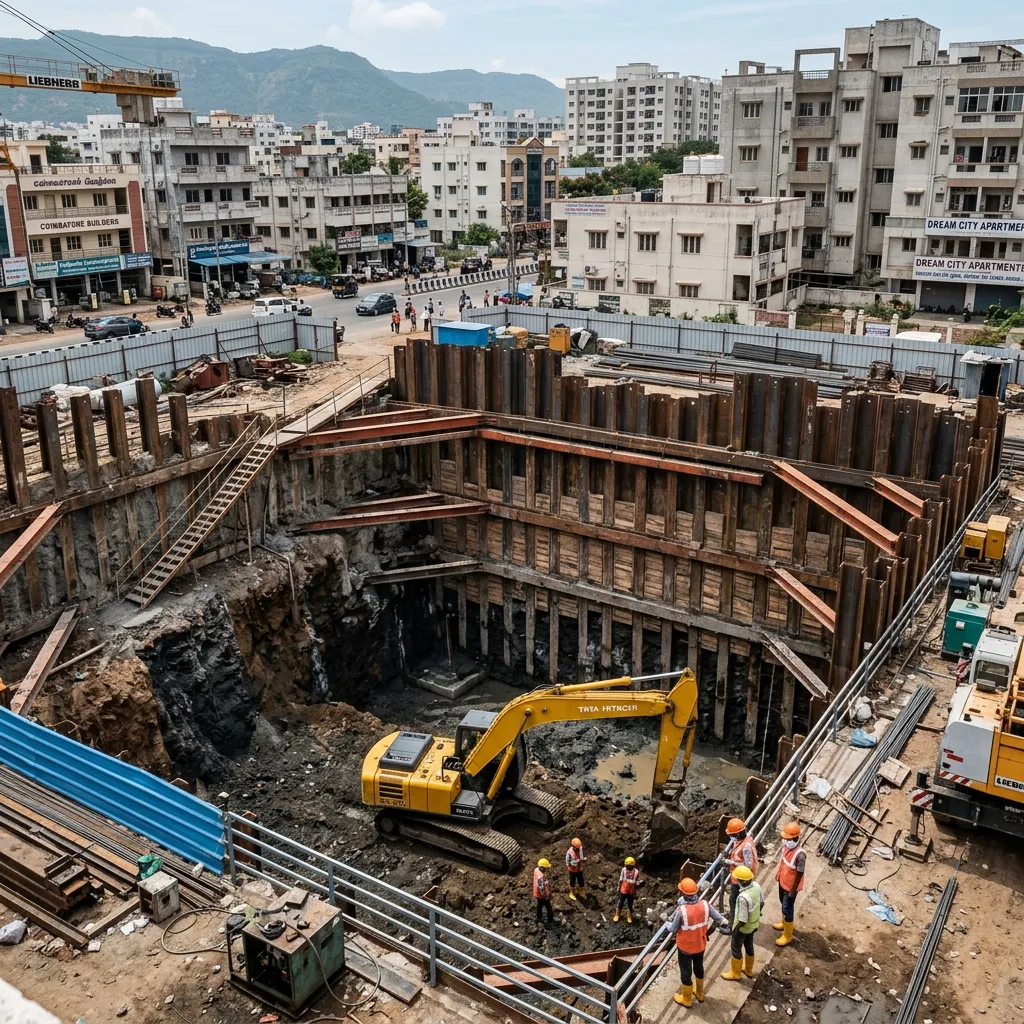

Striking shallow groundwater during basement or deep trench excavation destabilizes soil walls and prevents concrete foundation placement. To dewater these zones, we deploy wellpoint dewatering systems. This involves driving a series of vertical wellpoints around the perimeter of the excavation, connected to a common horizontal suction manifold under vacuum. High-capacity vacuum pumps draw down the local water table, creating a dry zone for excavation. After reaching the design foundation depth, a lean concrete mud-slab (mud mat) is cast over the soil bed. This seals the foundation, prevents groundwater from carrying away cement paste, and provides a stable working platform for reinforcing steel placement and structural concrete pouring. We also monitor discharge water quality, passing it through filtration basins to remove silt before releasing it, preventing environmental contamination. The dewatering system is run continuously until the concrete foundation is cast and cured, ensuring structural stability and preventing foundation buoyancy issues.
Excavations deeper than 1.5 meters present significant soil cave-in hazards, especially in the variable soil profiles of Coimbatore. To protect workers in deep trenches, Sri Vari Constructions enforces rigid shoring and protective system protocols. We utilize structural MS trench boxes, timber shoring, and sheet piling depending on soil classification (Type A, B, or C). Spoil piles of excavated earth are strictly placed at least 1.5 meters from the trench edge to prevent slides. Daily inspections are conducted by a designated safety officer to check for tension cracks, water seepage, or bulging walls. Safe access is maintained using heavy-duty aluminum ladders placed every 15 meters along the excavation, extending at least 1 meter above the surface to ensure secure egress. Workers are equipped with safety harnesses, helmets, and high-visibility jackets. We also conduct gas testing in deep trenches where organic matter might generate toxic gases, ensuring a safe working environment. These safety measures are supported by regular toolbox talks and emergency drills, ensuring that our field crew is prepared to handle any excavation hazard proactively.
3 · Identifying Prevalent Soil Strata & Expansive Clays
To achieve maximum structural stability during the identifying prevalent soil strata & expansive clays phase, we enforce strict compliance controls across our regional sites.
Soil chemistry plays a vital role in concrete foundation durability. High levels of soluble sulfates and chlorides in groundwater and soil can cause severe concrete deterioration. Sulfates react with hydrated calcium aluminate phases in cement, forming ettringite, which expands and cracks the concrete (sulfate attack). Chlorides penetrate concrete and depassivate reinforcing steel, initiating rapid rebar corrosion. In high-risk zones, such as agricultural fields with heavy fertilizer runoff or industrial areas near Coimbatore, we use Portland Pozzolana Cement (PPC) or Sulfate-Resisting Cement (SRC). We also increase the concrete cover over reinforcing steel and apply waterproofing bituminous coatings to foundation walls to block chemical ingress. We perform chemical testing of soil and groundwater samples prior to construction, determining sulfate concentration (SO3) and chloride content to select the appropriate cement type and concrete mix design, ensuring long-term structural durability under aggressive environmental conditions.
The geology of Coimbatore district features extensive basaltic and hard granite formations, particularly in industrial zones like Madukkarai, Thudiyalur, and Perundurai. Blasting is strictly controlled or banned near residential areas. Instead, we rely on mechanical rock excavation. We deploy 20-ton and 30-ton crawler excavators equipped with hydraulic breaker attachments (chisels). These heavy breakers apply impact energy to split rock along joint planes. Where the rock is massive and lacks joints, we use non-explosive expanding demolition agents (chemical splitting). Holes are drilled in a grid pattern, filled with the expanding mortar, which exerts expansive stress over 24 hours to crack the rock. This process is noise-free and vibration-free, complying with local environmental regulations and protecting adjacent structures. We also utilize drum cutters for precise rock profiling along excavation edges, minimizing over-break and reducing concrete consumption. The excavated rock is sorted and crushed on-site for reuse as road subgrade or filling material, reducing haulage costs and environmental impact.
| SPT Blow Count (N-value) | Soil Relative Density / Consistency | SBC Estimation Range (kN/m²) |
|---|---|---|
| 0 – 4 Blows | Very Loose Sand / Soft Clay | < 50 (Unsafe for footings, requires replacement) |
| 10 – 30 Blows | Medium Dense Sand / Stiff Clay | 150 – 250 (Safe for standard structural columns) |
| > 50 Blows | Very Dense Sand / Hard Rock | > 450 (Excellent load bearing capacity) |
4 · Geotechnical Bearing Capacities & Foundation Engineering
A major element of managing geotechnical bearing capacities & foundation engineering successfully lies in coordinating logistics, material testing, and machinery runtime.
Meticulous topographic surveying is the first step in successful site development and grading. Our engineering teams deploy Leica Total Stations and RTK (Real-Time Kinematic) GPS receivers to map site contours with millimeter accuracy. A high-density grid of elevation points is established, referencing permanent benchmarks linked to the national height datum. This digital spatial data is imported into CAD software to generate 3D digital terrain models (DTM) and calculate earthworks balances. Balancing cut-and-fill volumes minimizes the need to import expensive fill gravel or pay for hauling surplus soil off-site. Accurate stakeouts ensure that structural foundations, drainage channels, and roadway subgrades are excavated to the precise design coordinates and slopes, eliminating manual alignment errors and ensuring smooth surface drainage. During construction, we perform regular check-surveys to verify excavation depths and structural alignments, preventing deviations before concrete is poured. This digital workflow streamlines the client approval process and provides a precise as-built record for future site maintenance and expansion.
Accurate earthwork estimation is a primary driver of civil contracting profitability. During the pre-construction survey phase, we calculate excavation (cut) and embankment (fill) volumes. Ideal site development designs achieve an earthworks balance, where the volume of soil excavated matches the volume required for filling low areas and building embankments. When excavations yield poor-quality soil (like highly organic topsoil or expansive black cotton clay), it cannot be used as structural fill. We must factor in the cost of disposing of this spoil and importing graded gravel from approved borrow pits. Our estimators model these variables to ensure tender bids reflect actual transport and disposal costs. We utilize advanced earthwork calculation software to run multiple design iterations, optimizing grading profiles to minimize cut-and-fill imbalances. This analytical approach protects our project budgets and ensures we submit competitive, realistic tenders for public works projects.
5 · Soil Chemistry, Sulfate Hazards & Cement Selection Criteria
Ultimately, our site supervisors inspect every phase of soil chemistry, sulfate hazards & cement selection criteria to prevent structural settling and secure client sign-off.
Maintaining comprehensive quality records is a core requirement for PWD and NHAI project compliance. Our project offices maintain registers for material receipts, concrete pours, compression test results, and level checks. Material delivery tickets, mill certificates, and third-party laboratory reports are filed systematically. These records are reviewed during inspections by departmental engineers, verifying that all materials and construction processes meet project specifications before billing approvals are granted. We also compile as-built surveys, quality logs, and contract documentation, preparing detailed project handbooks for municipal and state agencies. This rigorous drafting procedure supports our Class-I standing, ensuring quality compliance across all public works.
PWD projects are subject to strict quality control audits by departmental engineers and third-party testing agencies. Quality audits involve inspecting raw material test certificates, reviewing batch plant logs, and conducting in-situ tests. We maintain a mobile testing laboratory equipped to perform grain-size distribution, liquid limit, plastic limit, and compaction testing directly on-site. All test results are logged in a quality register signed by our QC engineer and the department representative. Maintaining this detailed quality record is a prerequisite for billing approvals, demonstrating our commitment to delivering infrastructure that meets PWD specifications. We also coordinate third-party inspections with independent testing labs, validating our field and laboratory test results. This quality assurance framework ensures that all construction works meet contractual quality standards, facilitating timely payment approvals and project sign-offs.
6 · Pre-Excavation Risk Logs & Field Verification Benchmarks
Furthermore, daily reporting and quality logging are mandated to maintain complete project visibility and contract compliance.
Setting out building and road alignments requires establishing a high-accuracy survey grid. We establish a local traverse network using high-precision Total Stations, referencing permanent benchmarks. We set out structural grid lines, foundation corners, and roadway centerlines, marking them with iron pins and concrete monuments. Level checks are conducted regularly using digital levels to verify excavation and concrete pouring elevations, ensuring structural alignments comply with construction tolerances. We cross-verify alignments with structural design documents, confirming spacings and dimension details before structural casting. This survey verification process prevents layout errors, ensuring all structures are constructed at their correct spatial positions and design gradients.
Enforcing safety protocols on busy construction sites requires ongoing worker training. We conduct mandatory 15-minute toolbox talks every morning for all site personnel. These talks cover specific safety topics, such as correct use of Personal Protective Equipment (PPE), trench safety, safe lifting techniques, and crane operations. Site supervisors conduct daily safety walks to identify hazards like loose electrical cables, missing handrails, or unsafe ladders. By engaging workers directly in safety discussions and enforcing a zero-tolerance policy for safety violations, we foster a proactive safety culture. We also document safety audits and report near-misses, utilizing safety logs to improve site safety rules. This worker training and safety tracking system protects our field crew, achieving a zero-accident safety record across our construction projects.
Operational Summary & Takeaways
This concludes our comprehensive analysis on reading a borelog without a geologist. At Sri Vari Constructions, we understand that delivering high-performance infrastructure requires a combination of advanced engineering, rigorous quality assurance, and deep local geological knowledge. As a licensed Class-I Civil Contractor serving Coimbatore, Tiruppur, Erode, and the wider Kongu region, we adhere strictly to the latest Ministry of Road Transport and Highways (MoRTH) standards, Tamil Nadu Public Works Department (PWD) specifications, and NHAI quality guidelines. By maintaining a privately owned fleet of over 85 machinery units—including hydraulic excavators, motor graders, and vibratory compactors—and employing experienced site engineers, we ensure that every project we undertake is built to last. Our commitment to daily reporting, strict safety protocols, and robust engineering standards has established us as a trusted partner for public works and private industrial site developments across Tamil Nadu.
